special transformer and special purpose transformer. Whether you are specifying a for high-current furnace duty or a for demanding smelting environments, this guide covers the design parameters, standards, and selection criteria that matter.
Furnace-class transformers differ fundamentally from standard distribution units. They are engineered for custom impedance, very high secondary currents, rugged cooling, and precise voltage regulation — all essential for submerged arc furnace and heavy industrial applications.
When your process demands low impedance, high current, and rugged reliability, a furnace-class transformer is not an option — it is a necessity.
Submerged arc furnaces produce ferroalloys, calcium carbide, and yellow phosphorus at extreme temperatures. Each furnace type places unique demands on the transformer — from current density to voltage step range.
| Furnace Type | Material Produced | Transformer Emphasis |
|---|---|---|
| Ferroalloy furnace | Ferrosilicon, ferromanganese, ferrochrome | Low impedance, high secondary current |
| Calcium carbide furnace | Calcium carbide (CaC₂) | Continuous stable arc, high-current output |
| Yellow phosphorus furnace | Phosphorus (P₄) | Stable voltage regulation, rugged cooling |
Matching the transformer's low impedance and high current output to the furnace load profile is the key to stable, continuous smelting.
Each engineering parameter below is directly addressed by the proven design of our high-performance submerged arc furnace transformer.
Engineered with low impedance voltage and very high secondary currents for continuous, stable load running — essential for submerged arc furnace transformer applications.
High-quality grain-oriented silicon steel sheets, processed on fully automatic cutting lines with 45° full miter joints, no punching, and high-strength imported binding tapes.
Latest international main and longitudinal insulation structures with optimized winding configuration and premium insulation materials.
Multiple tap positions with small step differences; available in on-load (OLTC) or no-load (OCTC) configurations. Early stages provide constant capacity, later stages constant current.
Optimized for high-temperature, dusty, and vibrating conditions common in ore smelting plants.
Selectable cooling configurations: ONAN (oil natural air natural), OFWF (oil forced water forced), or ODWF (oil directed water forced).
Every industrial furnace transformer should be backed by verifiable compliance. Use this checklist when evaluating suppliers.
Use this decision matrix to match your plant's requirements with the right transformer configuration.
| Selection Factor | Your Requirement | Recommended Option |
|---|---|---|
| Load profile | Continuous smelting with high current demand | Low impedance, high current design (up to 150 MVA) |
| Ambient temperature | > 40 °C ambient, dusty environment | OFWF or ODWF cooling with robust enclosure |
| Cooling method | Water available / Water unavailable | OFWF (water) or ONAN (air) — selectable per plant |
| Voltage regulation | Frequent process changes / Fixed process | OLTC (on-load) for frequent changes / OCTC for fixed |
| Overload requirement | Planned overload up to 120% | Confirm with thermal simulation; standard design supports 120% |
| Standards compliance | IEC 60076 / GB/T 10228 | Confirm required standards at order |
Request our custom transformer questionnaire through the contact page to prepare your specification before contacting our engineering team.
In submerged arc furnace service, the transformer must hold a stable arc while delivering very high secondary currents. The low-impedance design and optimized winding layout support continuous, smooth load running while reducing electrical and thermal stress on the furnace circuit.
Our engineering team provides custom design, OEM/ODM, and bulk-order solutions for industrial clients worldwide. Submit your load profile and ambient conditions for a technical proposal.
Keep adjacent product options together for a faster catalog comparison.

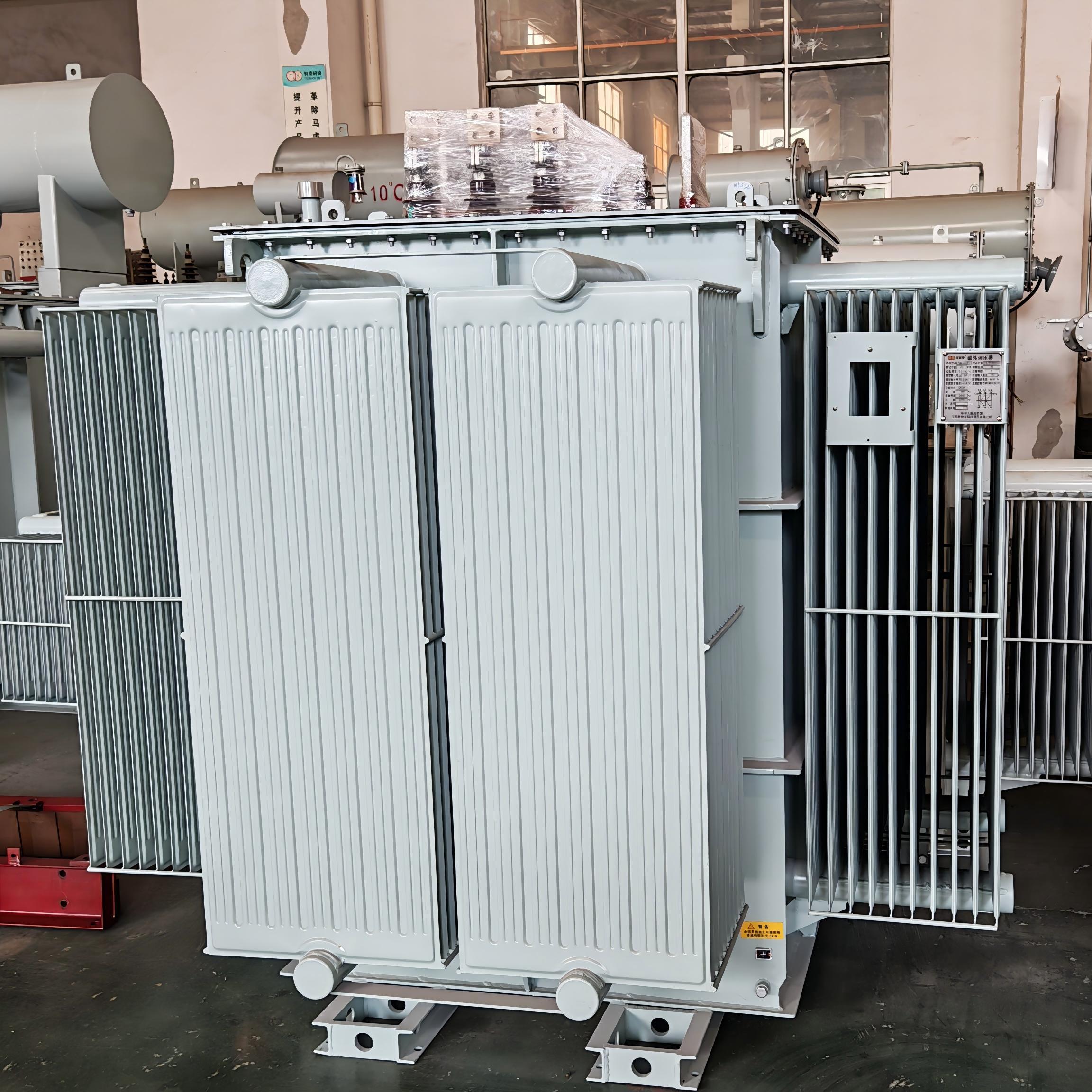

450kVA oil immersed stepless magnetic voltage regulator (magneto voltage regulator) uses high-grade cold rolled silicon steel, flame-retardant pollution-free insulation & sealed oi
View product
Professional distribution transformer suppliers offer high-performance 10kV 2000kVA oil immersed transformer. This three phase power transformer and electrical transformer features
View product

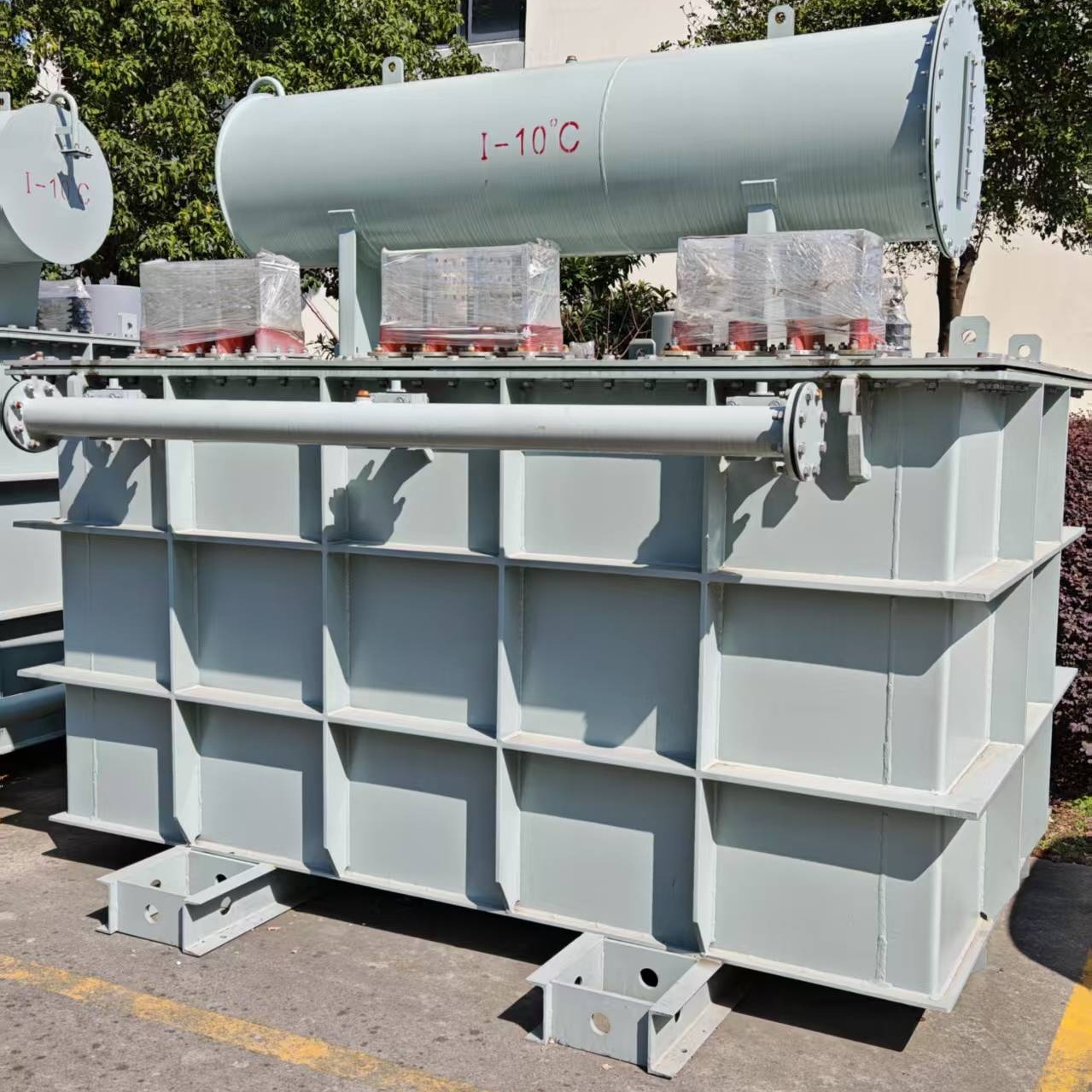

Professional-grade oil-immersed regulator for industrial furnaces. As a leading magnetic voltage regulator supplier, we integrate with your control power transformer for precise, s
View producta furnace transformer is engineered for custom parameters such as low impedance, very high secondary currents, selectable cooling (onan, ofwf, odwf), and multi-stage voltage regulation (oltc/octc). standard distribution transformers use fixed impedance, lower current density, and basic cooling, which limits their suitability for submerged arc furnace duty.
the critical parameters are low impedance voltage for stable arc operation, high secondary current capacity, a premium grain-oriented silicon steel core with 45° miter joints, advanced winding insulation for short-circuit resistance, and selectable cooling configurations to match plant conditions.
available configurations include onan (oil natural air natural), ofwf (oil forced water forced), and odwf (oil directed water forced). the right choice depends on ambient temperature, dust levels, and water availability at your plant.
the high-performance submerged arc furnace transformer is designed in accordance with iec 60076 and gb/t 10228. buyers should request type test reports and heat-run data to verify compliance.
low impedance voltage helps minimize arc flicker and power fluctuations, supporting stable, continuous load running. this contributes to smoother furnace operation, lower electrode stress, and more consistent smelting performance.
multiple tap positions are available with small step differences, in on-load (oltc) or no-load (octc) configurations. early stages can provide constant capacity output, while later stages can deliver constant current to match changing process requirements.
