Specifying rectifier duty is not the same as buying a standard power transformer: non-sinusoidal currents, harmonics and high thermal stress reshape what you should demand from any bidder. This guide gives EPC procurement leads and owner-side electrical engineers a repeatable way to compare rectifier transformer manufacturers, then walk the shortlist — including the transformer rectifier manufacturers who integrate diode or thyristor rectifiers into a single package — through eight scored criteria before you release an RFQ.
Score every bidder against the same eight lines. Each line carries a benchmark you can ask a manufacturer to evidence in writing, so the shortlist is built on capability rather than presentation.
Ask how many rectifier groups the design uses and how the phase shift between them is fixed.
Benchmark: 6 / 12 / 24 / 48 / 60 pulse options, with higher counts available on request.
Electrolytic processes ramp from low voltage at start-up to full load, so the regulating range drives the tap design.
Benchmark: regulation from 0 V up to 2000 V DC.
Double Star and Double Bridge arrangements behave differently on ripple and winding utilisation.
Benchmark: both Double Star (DSS) and Double Bridge (DB) configurations offered.
Rectifier duty loads windings with non-sinusoidal current, so insulation and stray-loss control matter as much as kVA.
Benchmark: harmonic suppression windings, low leakage reactance and robust insulation systems.
Cooling choice follows site ambient, water availability and the building or yard layout.
Benchmark: oil-immersed and water-cooled options for optimized thermal management.
Confirm which standard governs the design and which type tests will be witnessed.
Benchmark: designs aligned to IEC 60076, CSA, UL and CE.
Large ratings often exceed road, rail or lifting limits and need break-down for shipment.
Benchmark: modular construction that supports transport as single or split units.
Ask for references of the same topology, pulse count and load type already energised in service.
Benchmark: over 50 years of focused expertise and hundreds of commissioned units.
The three supplier archetypes below bid very differently on the same tender. Use the rows as your scoring lines and match each column to the risk you are carrying.
| Scoring line | Specialist rectifier transformer manufacturer | General power transformer house | Regional rebuilder or trader |
|---|---|---|---|
| Pulse capability | Multi-pulse groups up to 60 pulse with designed-in phase shift and proven potline arrangements. | Usually 6 or 12 pulse; higher counts depend on external filters and third-party coordination. | Rebuilds to the existing pulse count; redesign capacity is limited. |
| DC regulation range | Wide regulation engineered for the electrolytic ramp, from 0 V up to 2000 V DC. | Standard tapping range; extreme DC swings may need extra regulating equipment. | Whatever the original nameplate specified, with little margin for new duty. |
| Topology choice | Double Star (DSS) and Double Bridge (DB) both available, selected against ripple and utilisation targets. | Typically one topology family carried through the standard range. | Copy of the outgoing unit, topology rarely revisited. |
| Harmonic & thermal design | Harmonic suppression windings built into the design; insulation sized for non-sinusoidal current and thermal stress. | Harmonic performance often delegated to filters mounted downstream of the transformer. | Re-wound to original drawings; stray-loss behaviour may shift with the new load. |
| Cooling scope | Oil-immersed and water-cooled options engineered against site conditions. | Predominantly oil-immersed standard designs; water cooling is optional or outsourced. | Cooling package usually retained or replaced like-for-like. |
| Standards & type testing | Designs aligned to IEC 60076, CSA, UL and CE, with test documentation prepared for the project. | Compliance to the core power transformer standard, with rectifier-specific tests scoped per project. | Documentation may be historical or reconstructed from the original file. |
| Transport & site logistics | Modular construction allowing transport as single or split units, and integrated assemblies that cut footprint. | Standard tank design; split-unit shipping is a project exception. | Refurbished unit shipped as-is, dimensions fixed by the old design. |
| Commissioning record | Reference list built specifically on rectifier duty for smelting, electrochemical and heavy DC loads. | Reference list is broad but rarely rectifier-specific at high pulse counts. | Local service record, limited high-power rectifier references. |
Takeaway: a general house can win on price for simple 6-pulse duty, but once pulse count, DC regulation width or parallel potline groups rise, the specialist column is where the engineering risk sits. The rebuilder column suits spares and outage replacement, not new electrolytic capacity.
Incomplete RFQs come back as assumptions. Supply all nine inputs below and a manufacturer can size the unit, confirm topology and quote against your real operating envelope.
Use these published figures as the reference line when you weigh incoming quotations for rectifier duty.
Typical technical parameters are customizable to meet specific project needs, so state your actual duty rather than a rounded-up rating.
Ask these before you shortlist. The answers separate a manufacturer that builds rectifier duty in-house from one that assembles it from bought-in parts.
Ask which winding techniques are used and how turns and transposition are held constant across the rectifier groups.
Confirm whether harmonic suppression windings are part of the base design and how their performance is verified.
Low leakage reactance is a design output, not a slogan — ask for the tolerance and how it is confirmed before shipment.
Establish the maximum unit that can be tested in-house at full voltage and current, and what is delegated to a third party.
Integrated transformer-rectifier assemblies reduce parasitic losses and footprint; a split supply changes your site works scope.
For multi-group designs, ask how phase shifts such as −12°, −6°, 0°, +6° and +12° are achieved and documented.
Request references with the same pulse count, cooling method and load type — potline, electrochemical or heavy DC drive.
Ask how modular construction is reassembled, who supervises, and what site preparation the split design requires.
Oil-immersed and water-cooled packages should both be within the manufacturer's own design scope, not a subcontract.
Confirm supervision, energisation support and the documentation package handed over at commissioning.

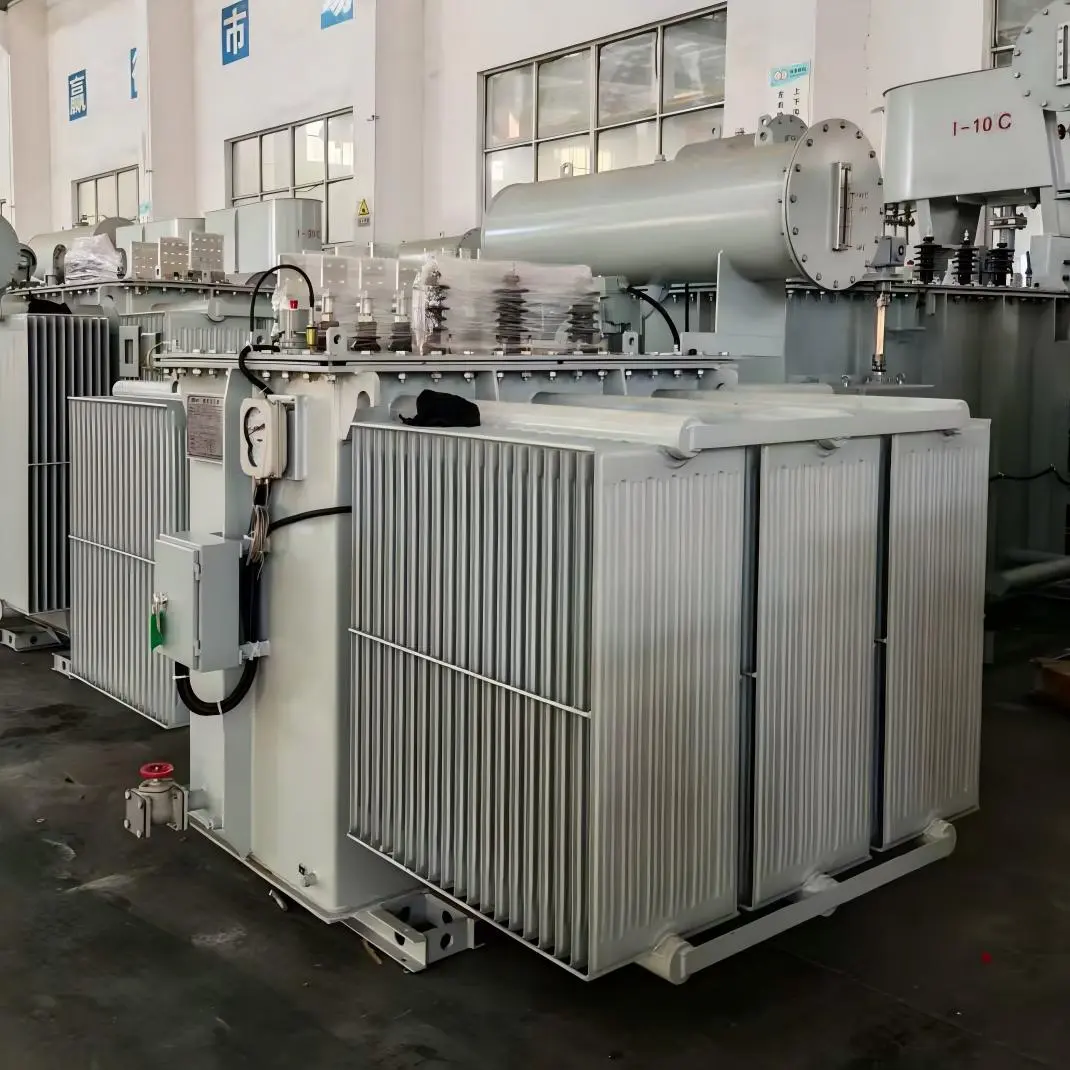

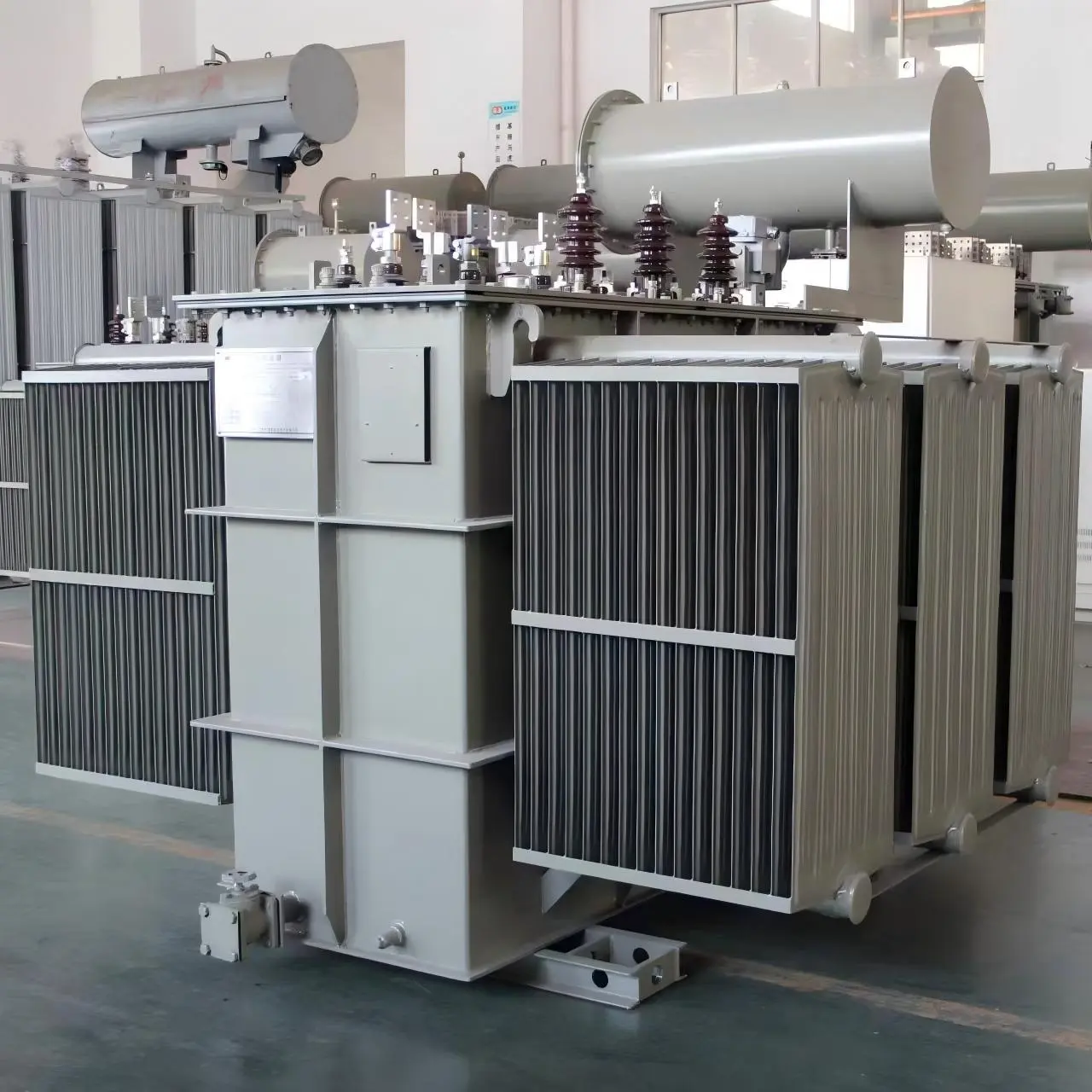

A single reference build for 6 to 60 pulse solutions serving aluminium smelting and heavy DC applications — useful as the yardstick for every quotation you open.
| Power capacity | Up to 100 MVA per unit; parallel configurations for projects exceeding 100 MVA |
|---|---|
| Pulse configuration | 6 / 12 / 24 / 48 / 60 pulses; higher pulse counts available on request |
| DC voltage regulation | Ultra-wide range from 0 V up to 2000 V |
| Phase shift arrangement | Five parallel 12-pulse groups at −12°, −6°, 0°, +6° and +12° for 60-pulse potline duty |
| Configurations | Double Star (DSS) and Double Bridge (DB) |
| Cooling | Oil-immersed and water-cooled options |
| Standards | IEC 60076, CSA, UL and CE |
| Construction | Modular, transportable as single or split units |
Every parameter above is a typical figure and is fully customizable to the project duty — treat the table as the minimum standard you should expect a bidder to match or justify.

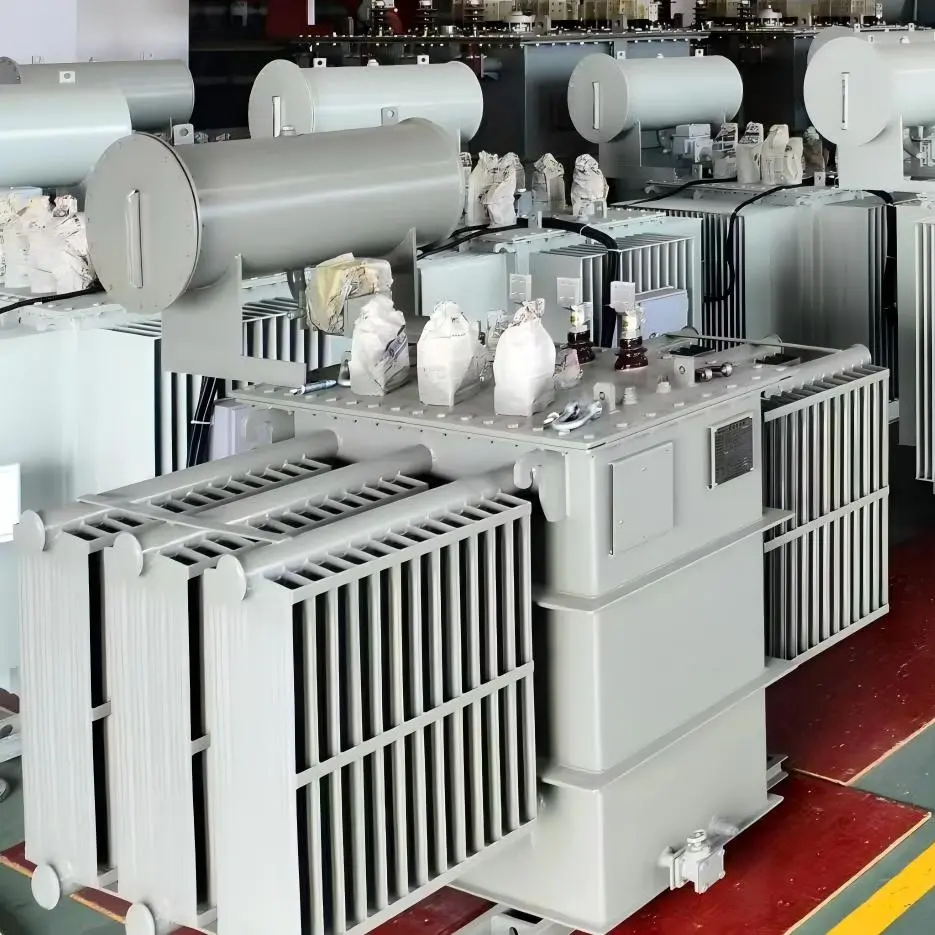

Ask a bidder to place your project against a comparable reference. These are the application areas covered by the published rectifier range.
The 60-pulse potline arrangement uses five parallel 12-pulse rectifier groups with phase shifts of −12°, −6°, 0°, +6° and +12°, which is the configuration to quote against if harmonic distortion and grid compliance are on your permit conditions.
Read your project against the closest scenario, then check that the bidder has addressed the corresponding decision before you compare price.
| Project scenario | Specification focus | Buyer decision |
|---|---|---|
| Aluminium potline, high harmonic limits | 60-pulse duty built from five parallel 12-pulse groups at −12°, −6°, 0°, +6°, +12°. | Confirm the phase-shift arrangement is designed in, not added by external filters. |
| Electrochemical or electroplating plant | Transformer integrated with diode or thyristor rectifiers as one transformer rectifier system. | Decide between an integrated assembly and a split supply, based on footprint and site works. |
| Heavy DC motor drives | Low leakage reactance, robust insulation and stable low-ripple DC output. | Verify stray-loss and ripple behaviour under the real duty cycle, not at nameplate only. |
| Medium-sized industrial DC supply | 6 or 12 pulse with a regulation range matched to the process. | Check whether a wider DC range than the process needs is inflating the quotation. |
| Retrofit or staged expansion | Modular construction, split-unit transport and parallel groups beyond 100 MVA. | Set the expansion stage now so the first unit is not undersized later. |
| Constrained or humid site | Oil-immersed versus water-cooled selection against ambient and altitude. | Choose cooling on site conditions, then confirm the thermal design follows it. |
Send the completed RFQ inputs and your operating envelope, and the rectifier range can be matched to your duty — including pulse count, DC regulation width, topology and cooling. Custom and OEM-style requirements, bulk project orders and multi-unit expansion stages are quoted on request.
Include rating, pulse count, DC voltage and current, phase shift, cooling, standard and FAT scope. The more of the nine RFQ inputs you supply, the faster the technical offer comes back.
Keep adjacent product options together for a faster catalog comparison.

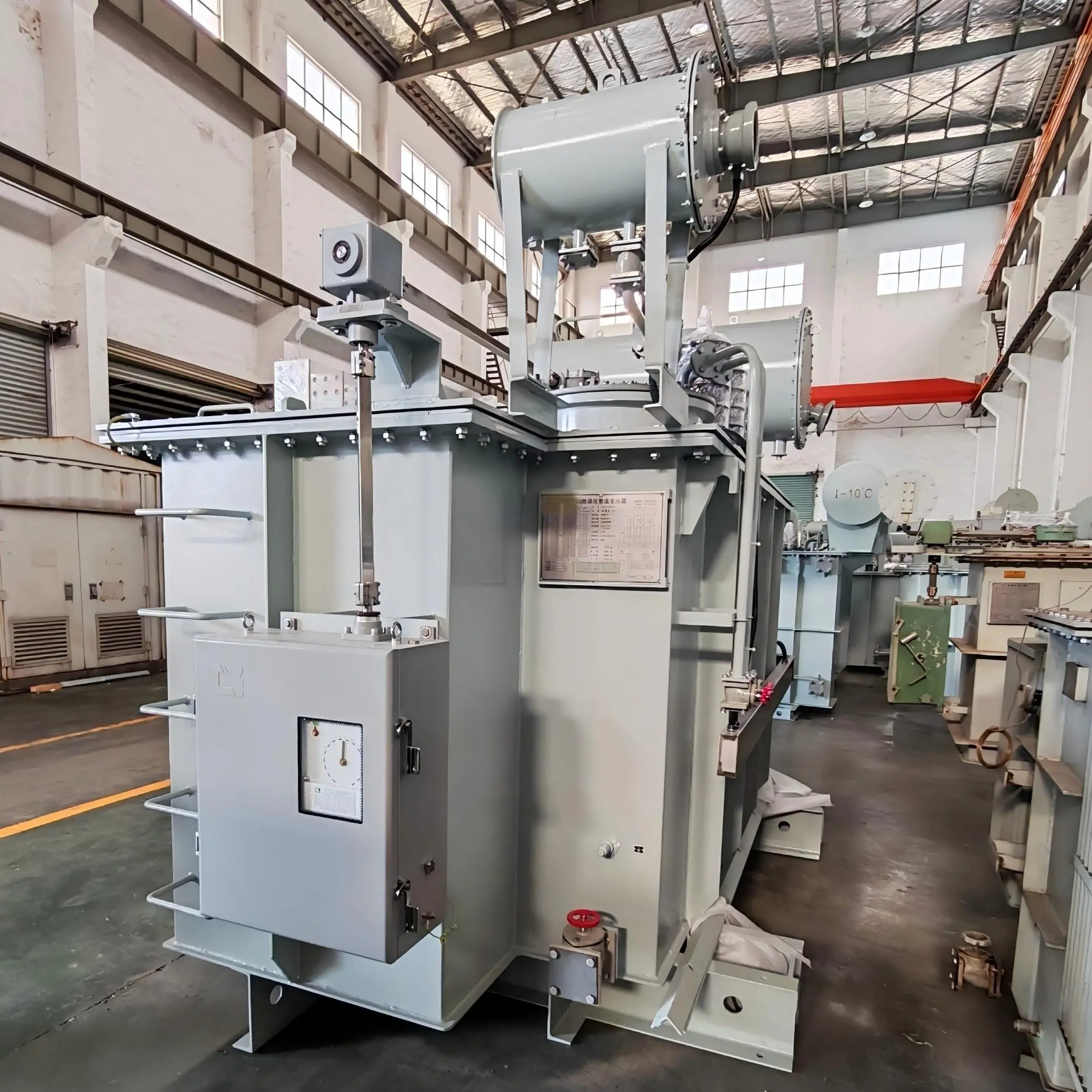

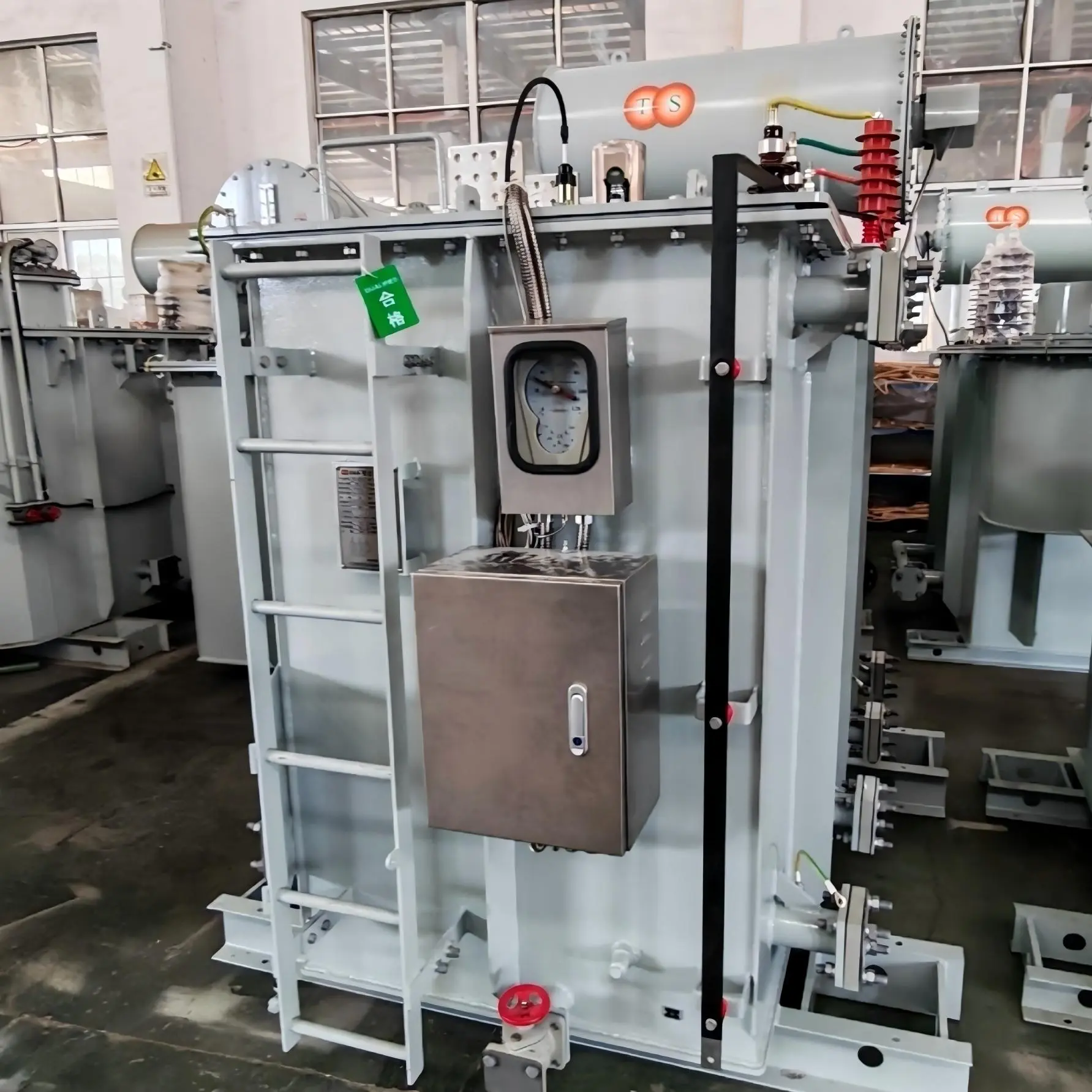

This oil immersed rectifier transformer is a heavy-duty special transformer with a robust welded steel tank coated in light grey anti-corrosion paint. Built for large power install
