We are a professional rectifier transformer manufacturer, supplying high voltage rectifier transformer, oil immersed rectifier transformer and oil immersed regulating rectifier transformer for aluminum foil formation production line, stable continuous operation, IEC standard, customized capacity.
Product Features

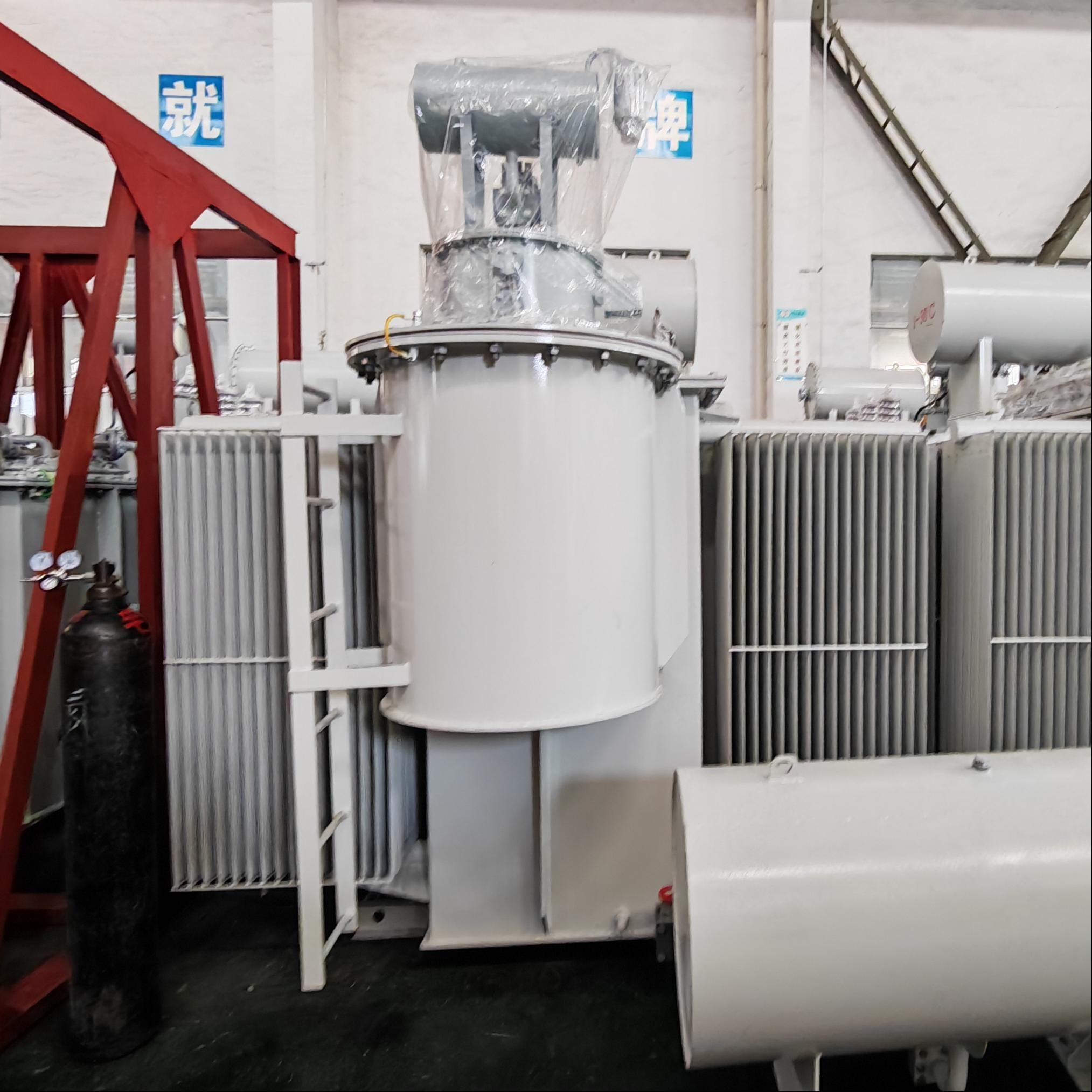

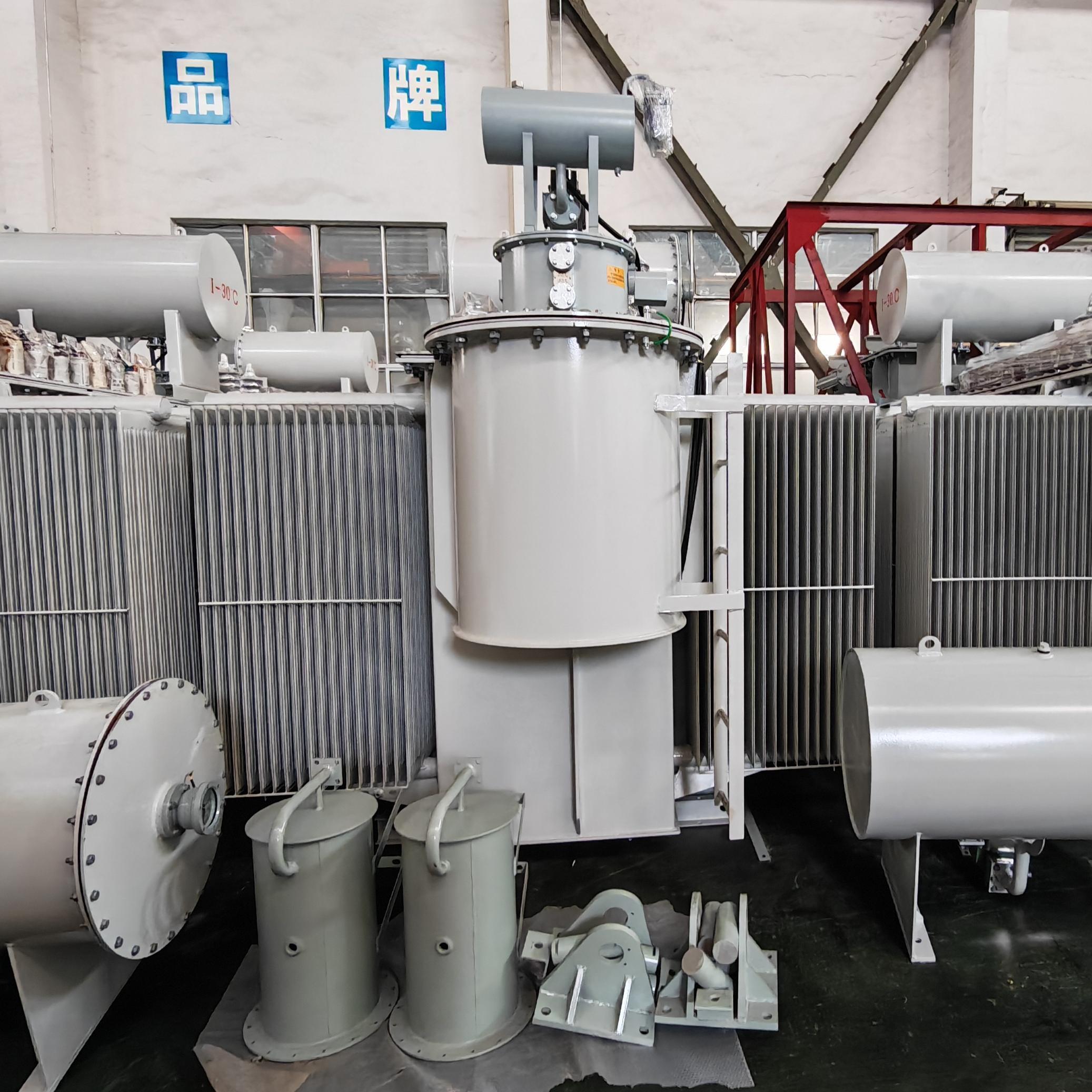

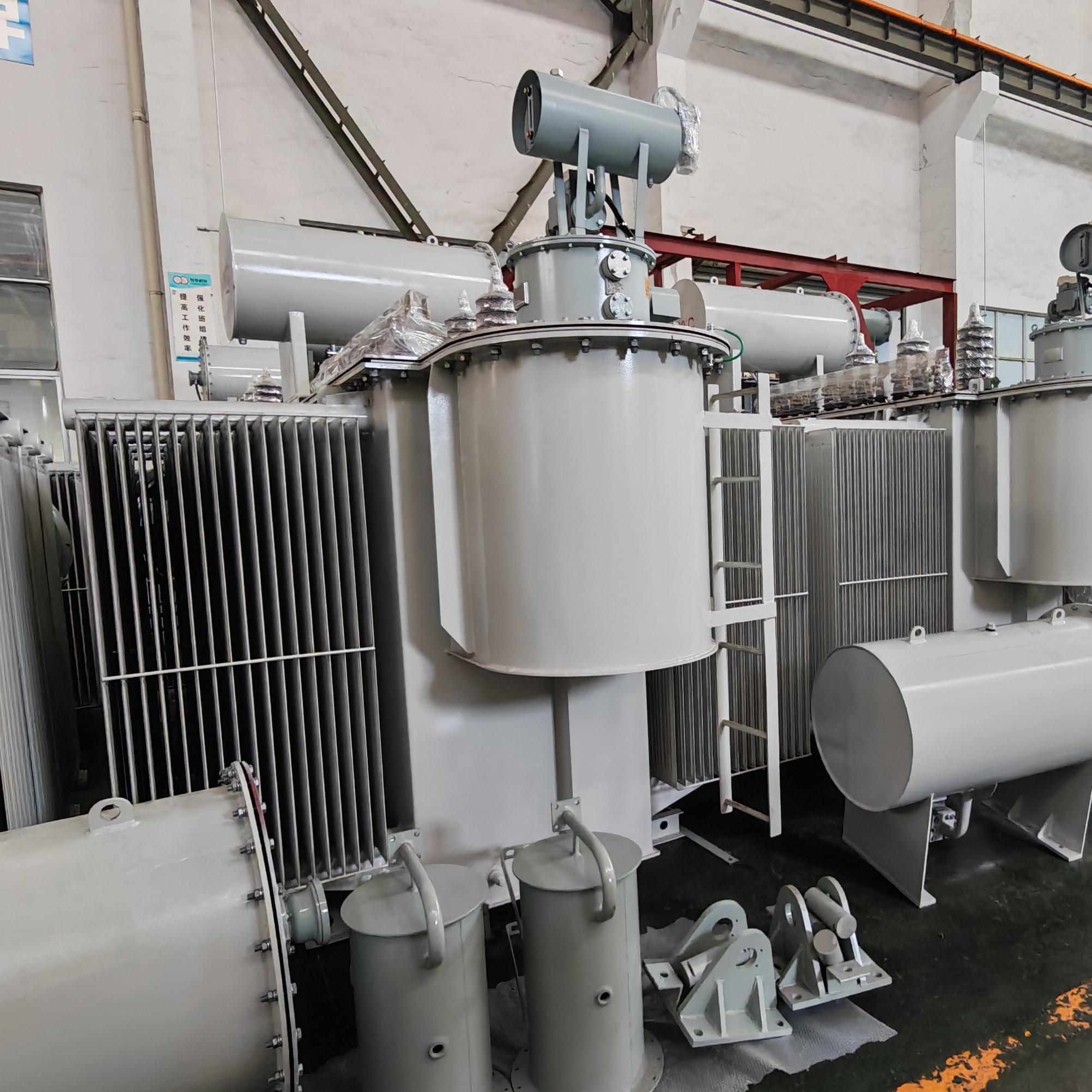

This aluminum foil formation rectifier transformer is a heavy-duty oil immersed regulating rectifier transformer specially designed for electrode foil manufacturing. Painted in light grey anti-corrosion coating, it adopts thick welded steel tank and large area radiator for heat dissipation. The complete unit is equipped with on-load tap changer, conservator, bushing terminals and auxiliary oil protection devices.
Specifications & Parameters
| Category | Specification / Description |
| Product Name | Aluminum Foil Formation Rectifier Transformer |
| Type |
Oil immersed regulating rectifier transformer / oil immersed rectifier transformer |
| Rated Voltage | Custom high voltage design, as high voltage rectifier transformer |
| Cooling Mode | ONAN / ONAF Oil cooling |
| Winding Material | Copper winding (customizable) |
| Operation | On-load tap changer, non-stop voltage adjustment |
| Applicable Industry | Electrode foil, aluminum foil formation production line |
| Standard | IEC 60076 |
| Color | Light grey anti-corrosion paint |
| Structure | Welded steel tank, external radiator, conservator, oil protection accessories |
| Customizable capacity, voltage, vector group upon client project requirements | |
Our aluminum foil formation rectifier transformer is widely adopted in electrode foil factories across Southeast Asia. As a rectifier transformer manufacturer, we control raw material cost internally to provide competitive factory price without sacrificing reliability. Our oil immersed regulating rectifier transformer is optimized for continuous electrochemical production, minimizing downtime and lowering your long-term operational cost. We can tailor high voltage rectifier transformer solutions to match your exact production line parameters.
Packaging, Warranty & Certifications Packaging：
The oil immersed rectifier transformer will be fixed on steel base skid, protected by waterproof plastic film for sea shipment. All spare parts are packed in solid wooden case, suitable for long-distance ocean transport to Southeast Asia.
Warranty：
12 months warranty after commissioning or 18 months from factory delivery. We provide lifelong technical support, spare parts supply and remote guidance. As a professional rectifier transformer manufacturer, we support after-sales technical service for overseas projects.
Certifications & Testing：
Designed and tested per IEC 60076 standard. Full set of factory test reports available upon request. We can provide customized inspection documents for your aluminum foil formation rectifier transformer project.
Use Scenarios
Electrochemical Power Supply for Aluminum Foil Formation Production Lines
Professional electrode foil manufacturing requires stable, adjustable, and continuous DC power to support high-precision electrochemical oxidation and oxide film forming processes. This dedicated regulating rectifier transformer is specially engineered for aluminum foil formation production lines, providing precise on-load voltage adjustment without production shutdowns. It maintains consistent current and voltage output during long-term 24/7 heavy-load operation, ensuring uniform aluminum foil thickness, stable oxide film quality, and low defect rates.
Adopting advanced multi-pulse phase-shifting technology, the equipment effectively suppresses harmonic interference caused by high-current electrolysis loads. It stabilizes factory grid quality, protects surrounding electrical devices, and fully complies with industrial power supply standards. With reliable oil-immersed cooling structure, the transformer delivers steady performance under continuous fluctuating working conditions, making it ideal for long-cycle electronic foil production.
Power Quality and Production Stability Optimization for Electronic Material Plants
Capacitor electrode foil and electronic material factories demand extremely high power accuracy and operational stability. This specialized aluminum foil formation rectifier transformer provides precise voltage regulation, low harmonic emission, and high power factor performance for electrochemical forming processes. It eliminates product defects caused by power fluctuation and ensures consistent forming quality for both anode and cathode aluminum foil.
Designed with enhanced insulation, anti-corrosion coating, and high-efficiency heat dissipation systems, the transformer adapts perfectly to high-temperature and high-humidity workshop environments. Its durable structure reduces equipment failure rates and unplanned downtime, significantly improving overall production efficiency. For electronic foil manufacturers, this reliable power supply solution optimizes production consistency, lowers maintenance costs, and supports large-scale continuous foil forming production.
FAQ
How do you ensure stable performance of the aluminum foil formation rectifier transformer under long-term continuous heavy loads?
Our aluminum foil formation regulating rectifier transformer is built for 24/7 continuous operation for electrode foil electrochemical production. It adopts multi-pulse phase-shifting winding to suppress harmonics and stabilize grid power quality. We use high-grade insulation materials and optimized oil cooling structure to withstand sustained fluctuating electrolysis loads, keeping consistent voltage and current output to guarantee stable foil forming quality.
Can you assist with system matching for aluminum foil formation production lines?
Yes. We provide full technical support to match this regulating rectifier transformer with your aluminum foil formation production line. Our on-load tap-changer design enables online voltage adjustment without line shutdown. We help optimize power configuration to reduce voltage fluctuation, achieve seamless integration with your electrochemical forming equipment and lower your reject rate.
What delivery timelines and warranty coverage do you offer?
Delivery typically takes 2 to 3 months depending on custom parameters, voltage class and capacity requirements. We offer an 18-month warranty from factory shipment, covering manufacturing defects (excluding damage from improper operation or poor site environment). Our engineering team provides remote technical guidance and after-sales support throughout the whole service period for your electrode foil project.
