We are a reliable rectifier transformer supplier offering custom three split oil immersed regulating rectifier transformer. This transformer rectifier adopts split low-voltage windings, ideal for metallurgy & electrolysis, stable harmonic suppression.
Contact us for quotation.

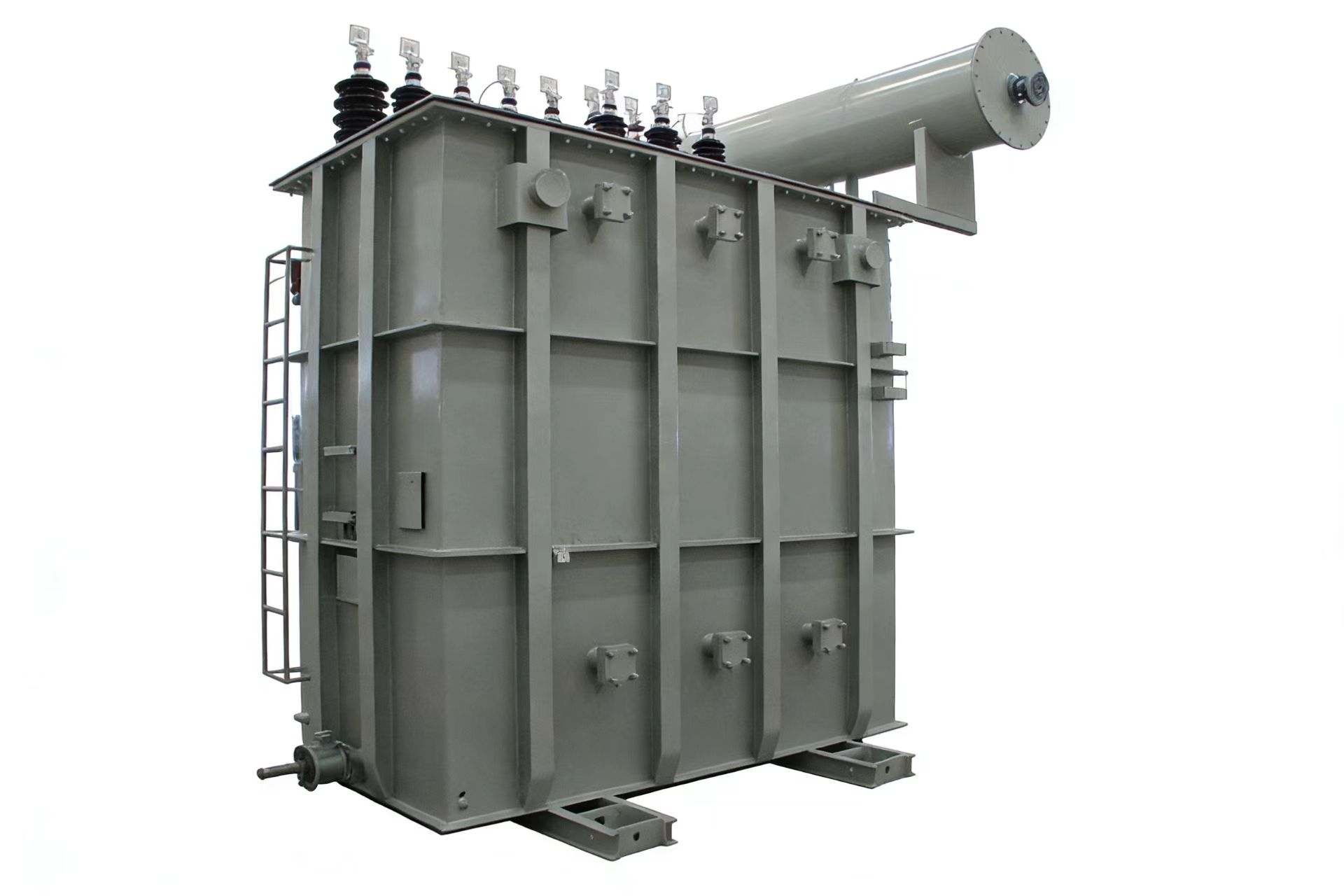

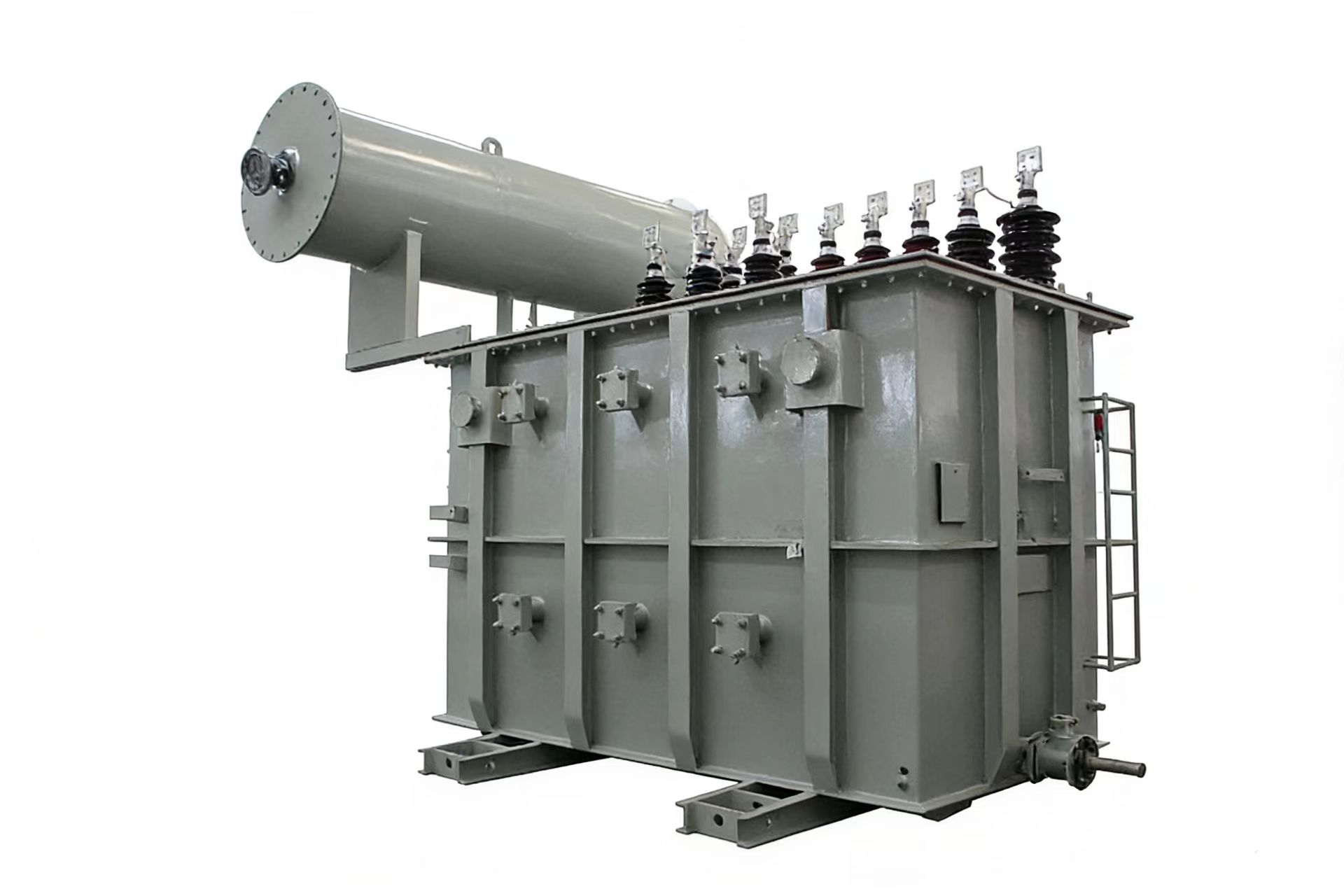

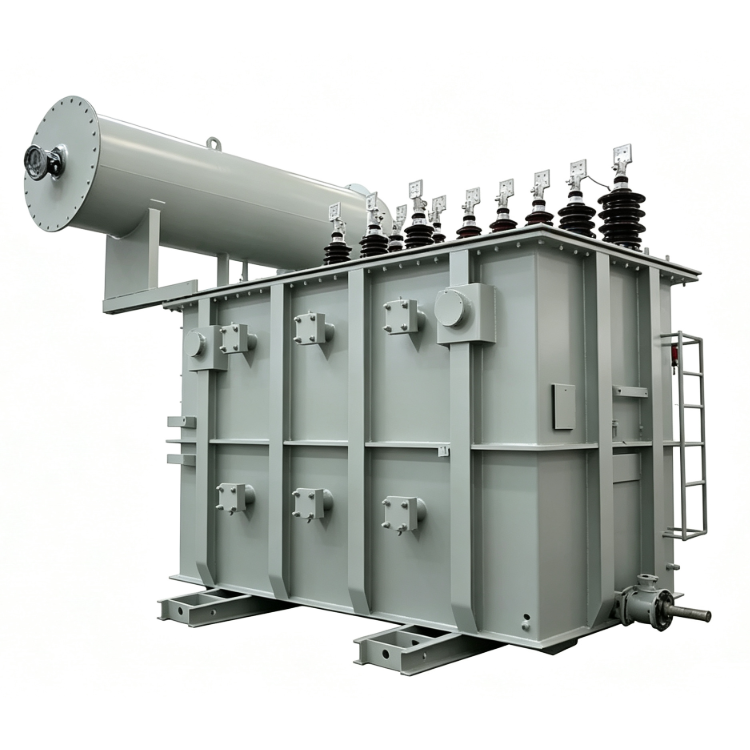

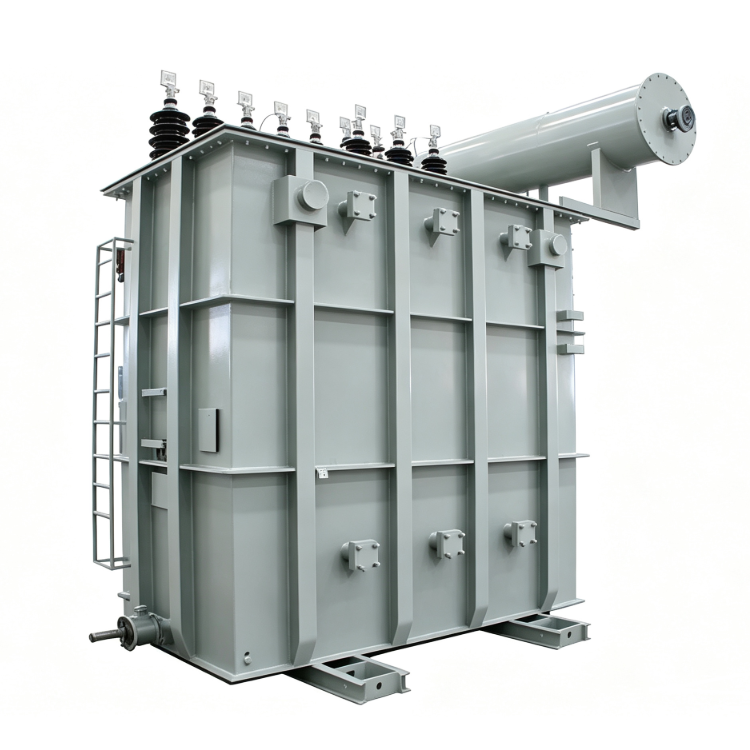

This three split rectifying transformer, also known as oil immersed regulating rectifier transformer, is painted with matte grey anti-corrosion paint.

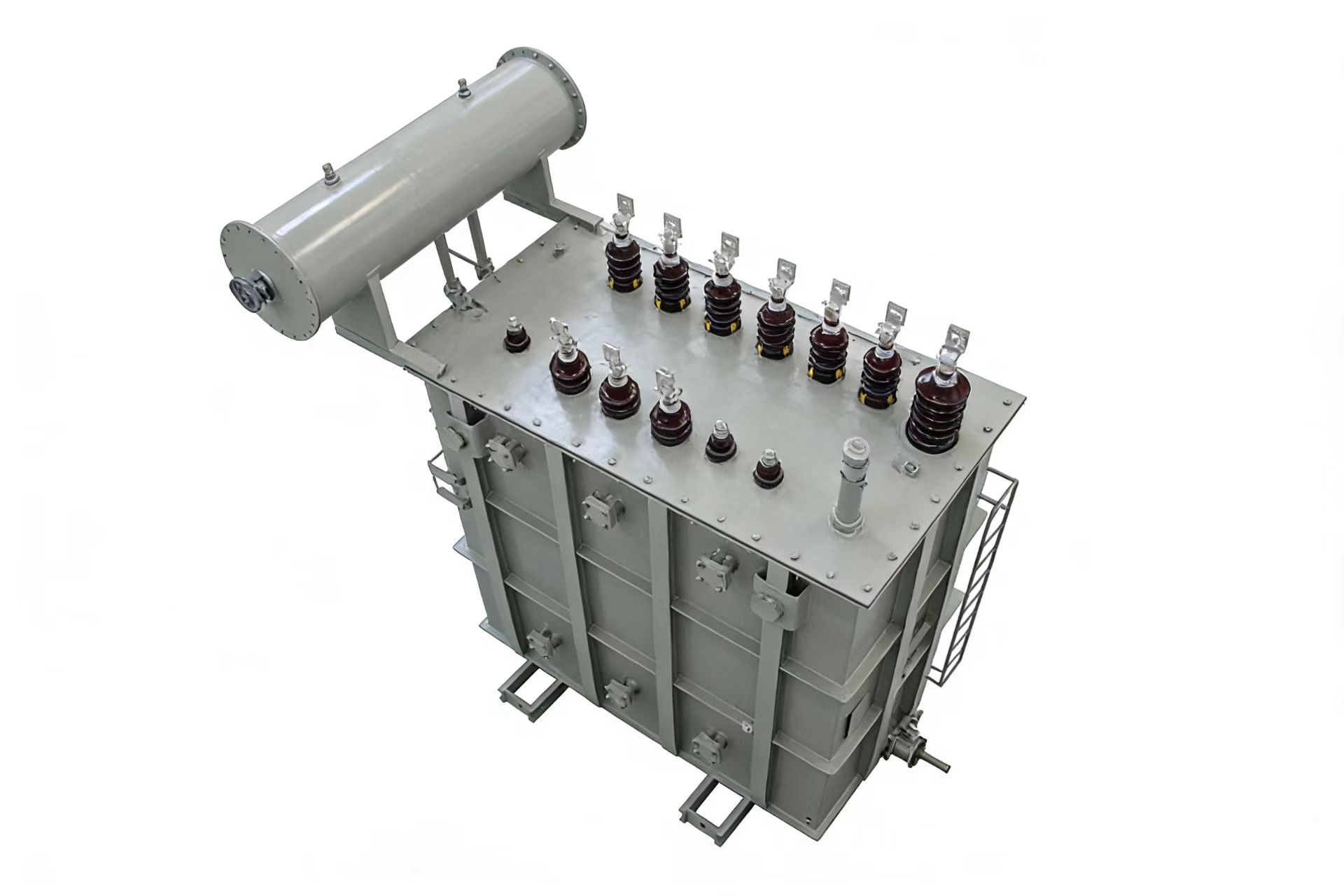

The tank is fabricated with thick steel plate, reinforced outer rib structure, conservator tank mounted on top together with high voltage porcelain bushings, side access ladder and inspection hatches. Its overall dimension can be customized according to rated capacity.
The core uses high grain-oriented silicon steel sheet and copper winding.
As a professional transformer rectifier, it splits secondary winding into three isolated groups to output multi-channel DC power, suppress grid harmonics and support continuous heavy-load operation for electrolysis, hydrogen production and metal refining projects.
We deliver competitive factory price with stable quality, making us a trusted rectifier transformer supplier for global industrial clients.
Product Features
Triple-split low voltage winding design: 3 independent isolated winding groups, enabling multi-pulse rectification, excellent harmonic suppression, reduce grid pollution.
This oil immersed regulating rectifier transformer supports on-load voltage regulation, flexible output voltage adjustment to fit dynamic production load.
Premium grain-oriented silicon steel core and full copper winding: low loss, strong short-circuit withstand capacity, long service life.
Robust welded steel tank with anti-rust grey coating, equipped with conservator, high voltage bushings, pressure relief valve and temperature monitoring sensors.
Wide application for electrolysis, metallurgy, hydrogen energy and electrochemical industry. Custom capacity, voltage and connection group available.
As a professional rectifier transformer supplier, we optimize internal structure to cut operation cost for end users, with competitive factory price.
Specifications & Parameters
| Category | Specification / Description |
| Product Name | Three Split Oil Immersed Regulating Rectifying Transformer |
| Type | Oil immersed regulating rectifier transformer |
| Rated Voltage | Customized up to 35kV |
| Winding Structure | Three-split secondary winding |
| Cooling Method | ONAN / ONAF / OFAF |
| Winding Structure | High grade grain-oriented silicon steel |
| Winding Material | Copper |
| Tank Material | Carbon steel with grey anti-corrosion painting |
| Voltage Regulation | On-load / off-circuit tap changer optional |
| Application | Electrochemistry, electrolysis, hydrogen production, non-ferrous metal smelting |
| Customization | Capacity, voltage, phase shift and dimension can be customized |
Packaging, Warranty & Certifications Packaging：
The three split transformer rectifier will be fixed on heavy-duty steel skid for ocean shipment. Radiators, bushings and accessories are packed in solid plywood crates. Reinforced steel frame protects the tank from deformation during transit. Desiccant is placed inside the main tank to keep insulation system dry during long sea transportation.
Quality Warranty：
18 months warranty from shipment date or 12 months after on-site commissioning, whichever comes first. The warranty covers manufacturing defects of this rectifying transformer. Our engineering team provides remote technical guidance for installation, commissioning and troubleshooting.
Compliance & Testing：
Our oil immersed regulating rectifier transformer complies with IEC 60076 and GB standards. Each transformer undergoes full routine tests including winding resistance, transformation ratio, no-load & load loss, dielectric test and short-circuit impedance test. CE, GOST, EAC and other certificates can be provided upon request.
Use Scenarios
Multi-pulse Rectification for Electrolysis Production
This three-split rectifying transformer, a professional oil immersed regulating rectifier transformer, serves as core power equipment for electrolytic workshops. The transformer rectifier adopts three independent split secondary windings to realize multi-pulse rectification, effectively suppressing harmonic interference on the public power grid. It maintains stable DC output under continuous heavy load, perfectly matching the long-cycle working conditions of non-ferrous metal electrolysis, brine electrolysis and hydrogen production. As an experienced rectifier transformer supplier, we tailor voltage and capacity parameters to fit different electrolytic cell requirements.
Power Supply for Non-ferrous Metal Smelting
Non-ferrous smelting plants face fluctuating heavy loads and harsh on-site environments. Our three-split transformer rectifier features strong short-circuit resistance and reliable oil cooling system. The split winding design ensures each winding operates independently; failure of one branch will not shut down the whole system, improving production continuity. The adjustable voltage function adapts to different smelting stages, reducing energy consumption and lowering the overall operating cost of the metallurgical plant.
Electrochemical & New Energy Industrial Projects
For electrochemical processing and green hydrogen projects, stable and controllable DC power is essential. This rectifying transformer delivers precise voltage regulation and low harmonic distortion. The robust grey painted steel tank can withstand high temperature and dust in industrial workshops. We support full OEM customization on dimensions and electrical parameters, which makes us a trusted rectifier transformer supplier for global new energy industrial investors.
The three split transformer rectifier is a special oil immersed regulating rectifier transformer whose low-voltage side is divided into three electrically isolated windings. It is mainly used for multi-pulse rectification systems to reduce grid harmonics and supply stable DC power for electrolysis, metallurgy and hydrogen production.
The triple-split structure realizes independent power output of three groups of windings. It greatly suppresses harmonic pollution to the power grid, improves power factor, and one winding fault will not cause full equipment shutdown. Compared with conventional rectifying transformer, it has better load balance performance for multi-rectifier units.
Yes. As a professional rectifier transformer supplier, we customize rated capacity, primary & secondary voltage, tap changer type, cooling mode, connection group and overall dimension according to your project technical specification.
Each oil immersed regulating rectifier transformer will complete a full set of routine tests: winding resistance test, voltage ratio test, no-load loss & load loss test, dielectric withstand test and short-circuit impedance test. Test reports can be provided together with shipment documents.
We provide 18 months warranty from shipment or 12 months after commissioning, whichever comes first. Our engineers offer remote guidance for installation, commissioning and troubleshooting of this transformer rectifier. Long-term technical consultation and spare parts support are available.
