Optimized for Electroslag Melting Processes and Industrial Users

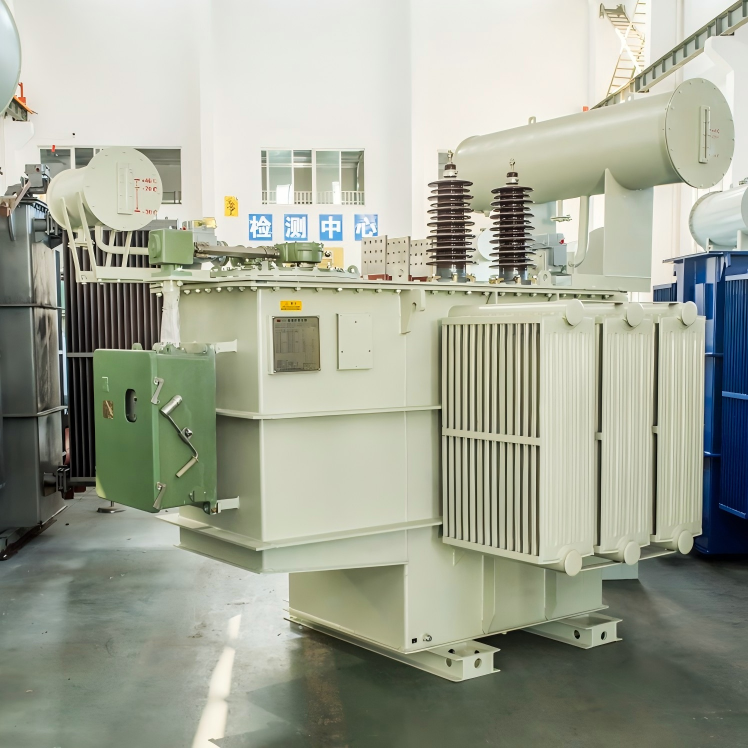

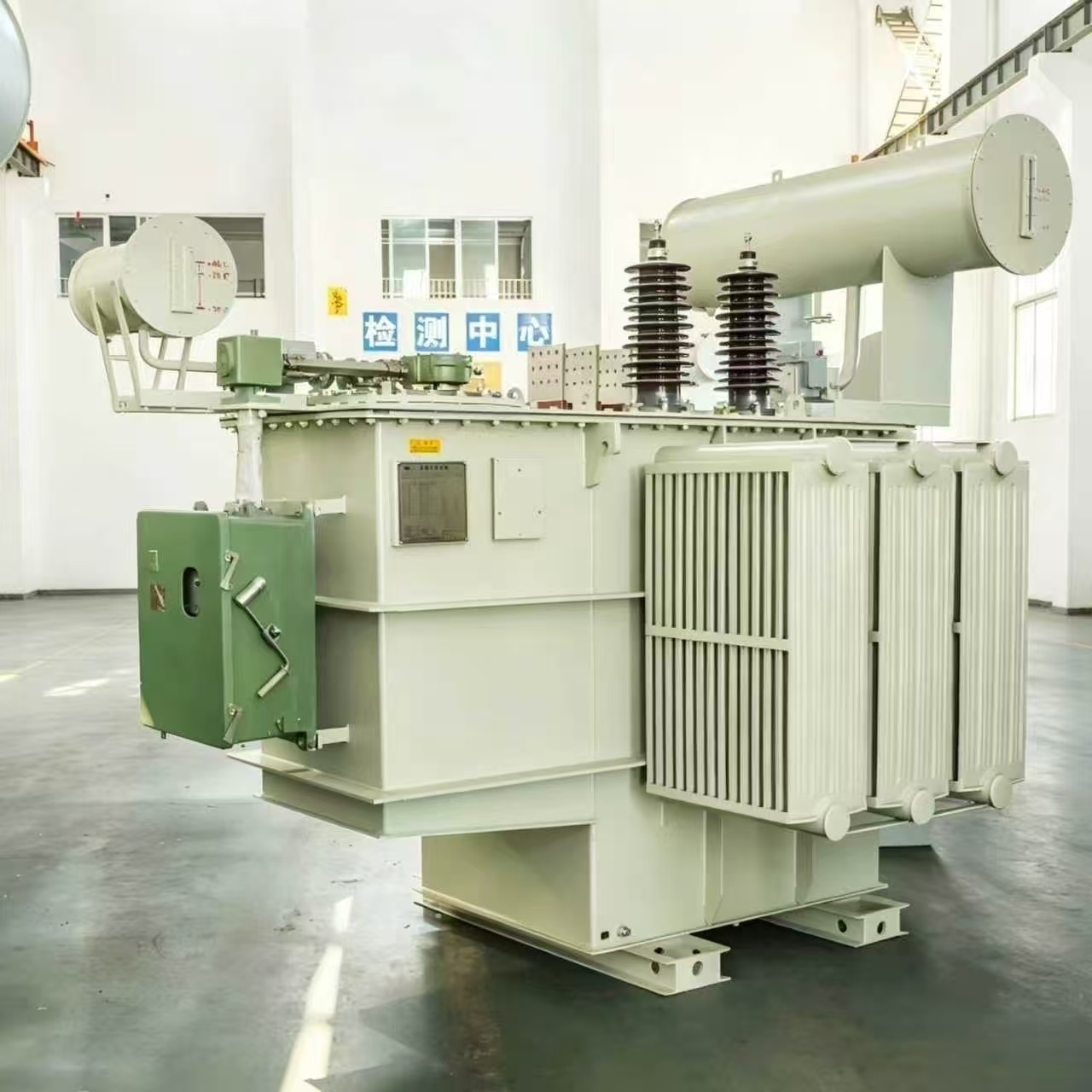

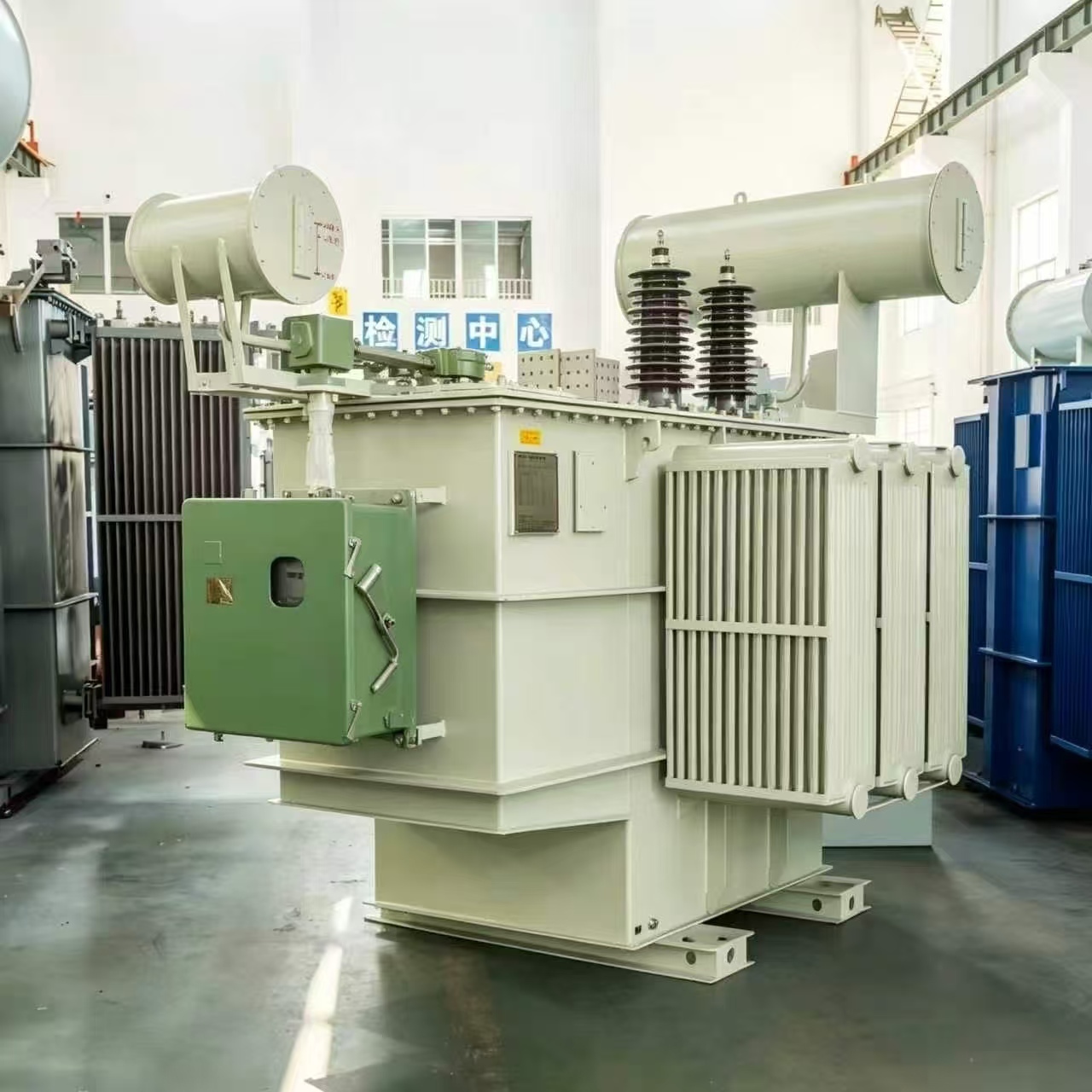

The Electric Slag Furnace Transformer is engineered to meet the stringent requirements of electroslag remelting in steelmaking and related precision alloy manufacturing. This solution targets metallurgical facilities, aerospace alloy producers, and superalloy refiners requiring reliable power delivery with stable no-load voltage and minimal impedance. As a special purpose transformer, it supports continuous arc-less slag operation, facilitating superior melting consistency. Our company serves as a custom power transformer manufacturer, enabling bespoke design adaptations to meet unique production line integrations in heavy-duty electric furnace operations.
Technical Excellence with Adaptive Cooling and Safety Standards
This special design transformer incorporates ultra-low-loss silicon steel cores and high-conductivity copper windings, ensuring efficiency and durability under industrial stresses. It features multiple voltage regulation modes, including off-circuit and on-load tap changers, enabling precise voltage control suited for ESR requirements. Cooling options span dry-type air cooling, oil-immersed self-cooling, and forced oil-water cooling, accommodating various capacity demands. The construction complies with IEC 60076, IEEE, and GB standards, certifying this electric furnace transformer for rigorous industrial deployment with low harmonic distortion and enhanced mechanical resilience.
Application in Metallurgical Industries and Electroslag Refining
This transformer plays an integral role in metallurgy and smelting industries, particularly in aerospace-grade steel and superalloy production requiring high melting uniformity and energy efficiency. It enables uninterrupted operations in complex refining cycles by providing stable power to electric slag furnaces, reducing energy loss through its reactor-less design. Its adaptability as a special transformer facilitates integration with titanium slag furnaces and customized voltage ratio settings, ensuring seamless workflow alignment in continuous industrial refining and precision alloy manufacturing environments.
Robust Design Tailored for Demanding Industrial Use
The structural design of this electric furnace transformer emphasizes mechanical robustness, featuring reinforced frames and optimized oil tanks to endure thermal cycling and vibrations typical of electroslag refining plants. Our expertise as a submerged arc furnace transformer manufacturer allows advanced component selection and modular integration, including tap changer customization for specific operational transitions. This design philosophy supports easy installation and maintenance while ensuring compliance with high international standards, making it a reliable component within complex electric furnace systems.
Enhanced Performance and Integration for Industrial Efficiency
Performance-wise, the transformer ensures low impedance and stable voltage output critical for reducing energy losses and harmonic distortion in ESR applications. Its design facilitates quiet operation, low maintenance demands, and supports continuous 24/7 industrial rhythms. These characteristics maximize process uptime and contribute to better ROI for metallurgical plants. By providing tailored transformer configurations, our special transformer solutions optimize compatibility with existing infrastructure, enabling efficient power management and operational reliability in diverse electric furnace environments.
Product Features
• Optimized for ESR Processes
Engineered to provide a low no-load voltage and minimal impedance voltage, perfectly suited for the continuous, stable melting required in electroslag refining.
• Precision Voltage Regulation
Available with multiple tapping levels to suit various smelting stages. We offer three regulation modes:
1. Off-circuit tap changing (OCTC)
2. Excitation-based no-load regulation
3. On-load tap changer (OLTC) for uninterrupted operation.
• Robust Construction
Featuring a reactor-less design specifically for slag melting, reducing energy loss and footprint.
• Advanced Cooling Systems
Depending on capacity, we offer natural air cooling (dry type), oil-immersed self-cooling, or forced oil-water cooling (FOWS) for heavy-duty industrial cycles.
• Versatile Applications
Ideal for producing large high-quality alloy ingots, flat slabs, and complex shaped castings. We also specialize in single phase titanium slag furnace transformer designs for specific smelting needs.
Specifications & Parameters
| Category | Specification / Description |
| Product Name | Electric Slag Furnace Transformer (ESR Transformer) |
| Input Voltage |
6kV, 10kV, 35kV, or Custom |
| Output Voltage | Low voltage, multi-stage adjustable |
| Phase | Single phase (standard for ESR) or Three-phase |
| Regulation Range | High-voltage side tap switching |
| Cooling Method | Dry-type / Oil-immersed / Forced Oil-Water Cooling |
| Impedance | Low impedance design for high efficiency |
| Standard Compliance | IEC 60076, IEEE, GB Standards,CSA,etc |
Packaging, Warranty & Certifications Packaging：
All units are packed in seaworthy reinforced wooden crates or steel frames. Sensitive components are vacuum-sealed with moisture-proof desiccants to ensure integrity during international transit.
Warranty：
We provide a standard 18-month warranty from the date of delivery or 12 months from the date of commissioning. Our global technical team offers 24/7 remote support and on-site maintenance services.
Certifications & Testing：
ISO 9001:2015 Quality Management System.
CE & UL compliant for international markets.
Full Type Test Reports from accredited third-party laboratories.
Use Scenarios
Role in Aerospace-Grade Alloy Electroslag Remelting
Within aerospace-grade superalloy manufacturing, the Electric Slag Furnace Transformer provides stable, low-no-load voltage essential for producing high-quality alloys with minimal impurities. It supports arc-less slag operation, enhancing thermal efficiency during remelting cycles. This special purpose transformer conforms to strict safety and electrical standards, ensuring regulatory compliance and operational safety. Its seamless integration with refining line instrumentation and electric furnace controls enables precise process monitoring and power regulation, critical for consistent alloy quality in aerospace applications.
Integration in Heavy-Duty Industrial Refining Environments
In large-scale metallurgical plants employing continuous smelting cycles, this transformer serves as a fundamental power supply unit specifically designed for electric furnace operations. Featuring versatile tap changers and multi-phase configurations, it adapts to dynamic load demands while maintaining minimal harmonic distortion. As a trusted custom power transformer, it integrates efficiently with cooling systems such as forced oil-water cooling, safeguarding against thermal overload. This stable, adaptive power source enhances workflow continuity and reinforces system reliability under the demanding conditions of heavy industrial refining.
FAQ
What special materials are used in your Electric Slag Furnace Transformer?
We use eco-friendly ultra-low-loss silicon steel cores and high-conductivity copper windings to ensure efficiency and durability. These materials help us meet international standards such as IEC 60076, ensuring reliable operation in demanding steelmaking environments.
Can I request a custom power transformer configuration for my facility?
Yes, we provide tailored solutions including voltage ratios, tap changer types, and single-phase or three-phase configurations. Our custom power transformer manufacturer expertise allows us to meet your precise industrial needs.
How do you handle installation and commissioning for your electric furnace transformer?
We offer on-site commissioning and technical support to ensure seamless system integration with your electric furnace. Our professional team guides your project through commissioning to guarantee optimal performance and reliability.
What logistics and packaging methods do you use to protect the transformer during shipment?
Our products are packaged in seaworthy reinforced wooden crates or steel frames with vacuum-sealed sensitive components, ensuring safe delivery worldwide. As a trusted submerged arc furnace transformer manufacturer, we prioritize secure transport for your equipment.
